製品の特長・仕様
Product Features &
Specifications
01
High intensity of
Flicker-free,
Adjustable spot size for
Lighting Technology
Focusing on the user experience, its light quality is developed specially for surgeons.High intensity of
160,000 Lux*
（Color Temperature: 5,000K*）
Equipped with 3 powerful LEDs, it provides the highest luminance within the standard, BASIC SAFETY and ESSENTIAL PERFORMANCE of SURGICAL LUMINAIRES.
The long-life LEDs provide a natural color that makes it easier to distinguish tissues.
The long-life LEDs provide a natural color that makes it easier to distinguish tissues.
Headlight illuminance is calculated based on illumination distance of 400mm

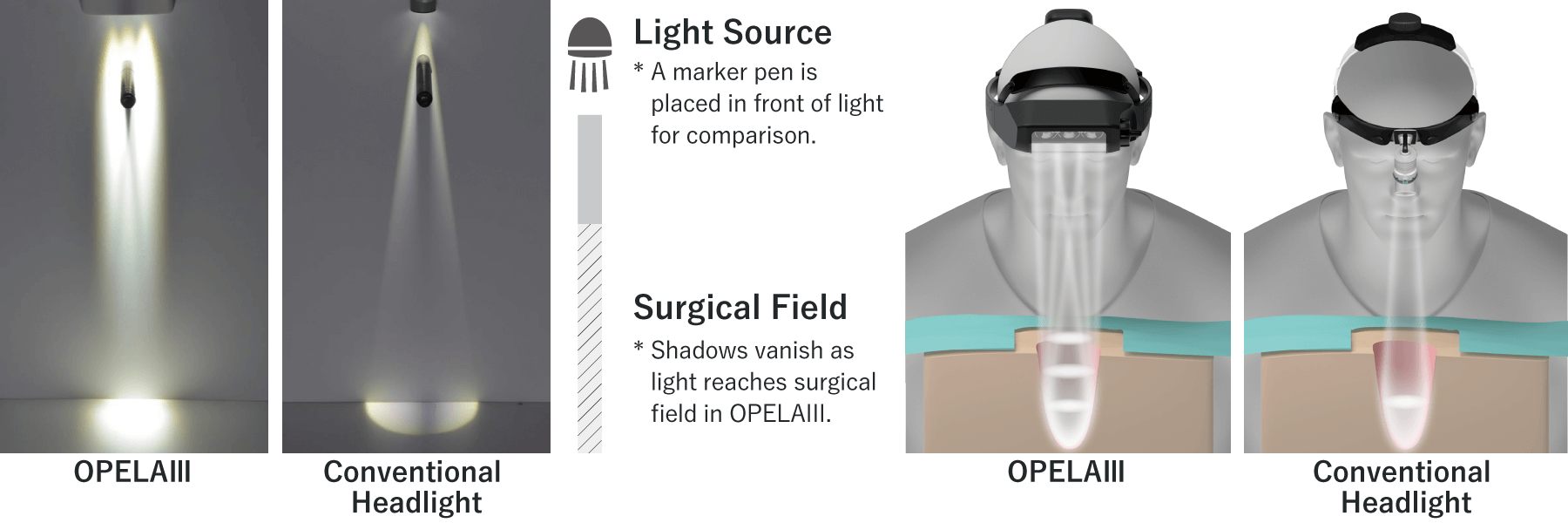

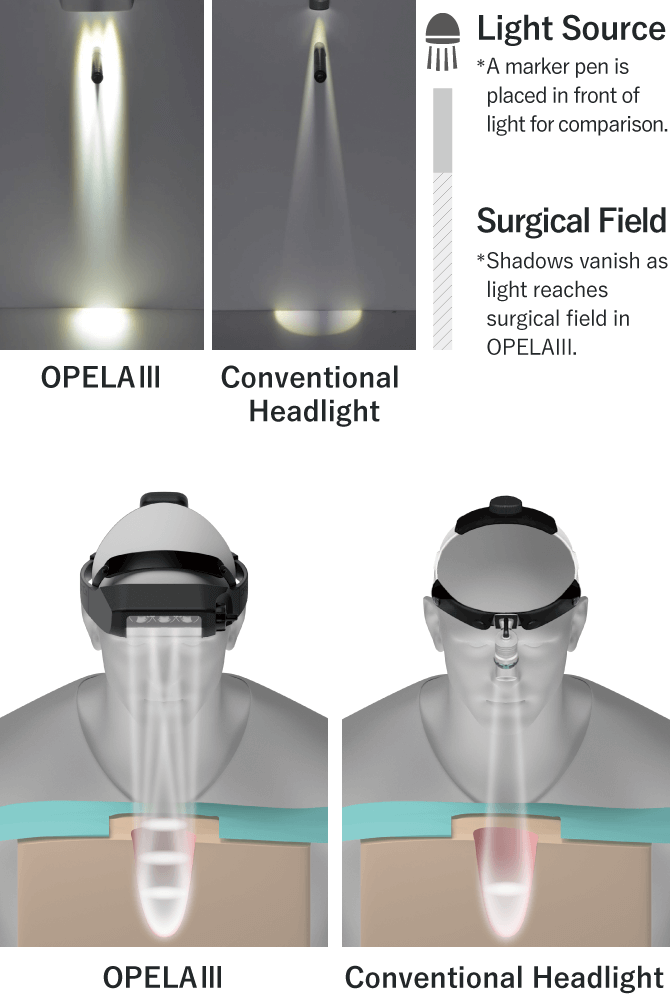

Reduces shadows, illuminate deep areas and cavities
Unique optical distribution design minimizes shadows, penetrates deep into surgical field and illuminates inner cavities and walls.
Flicker-free,
Fatigue-free light
The optical engineering on OPELAIII Cx allows for faded boundary, making the light less tiring on the eyes.
Using “DC lighting system” it keeps a constant current flowing through the LEDs.
This eliminates “flickering”, which puts a strain on the eyes.
Using “DC lighting system” it keeps a constant current flowing through the LEDs.
This eliminates “flickering”, which puts a strain on the eyes.
Adjustable spot size for
broad range of procedures
Spot size diameter of
6–20 cm*
It can illuminate the surgical field with pinpoint accuracy like a spotlight, while also illuminating wider area of the operating field.
Headlight illuminance is calculated based on illumination distance of 400mm
02
With centrally balanced weight distribution,
Maximizing Efficiency
By completely redesigning from scratch,OPELAIII Cx provides high quality illumination with a revolutionary heat dissipation system.Lighter Weight

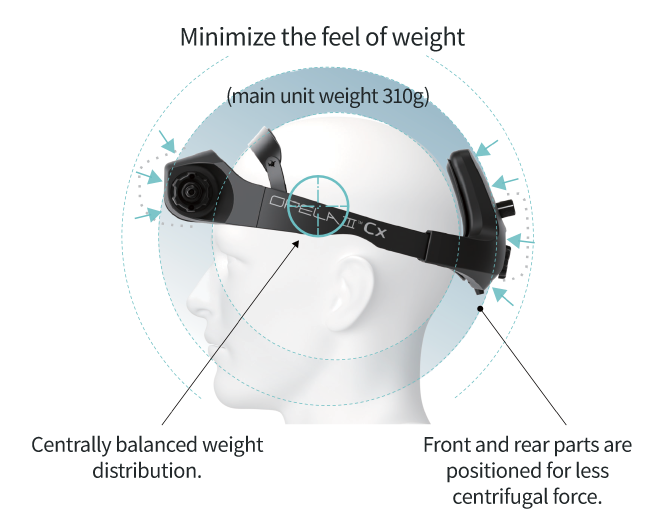

With centrally balanced weight distribution,
the sensation of weight is significantly lighter.
Actual weight is 20% less than previous model.

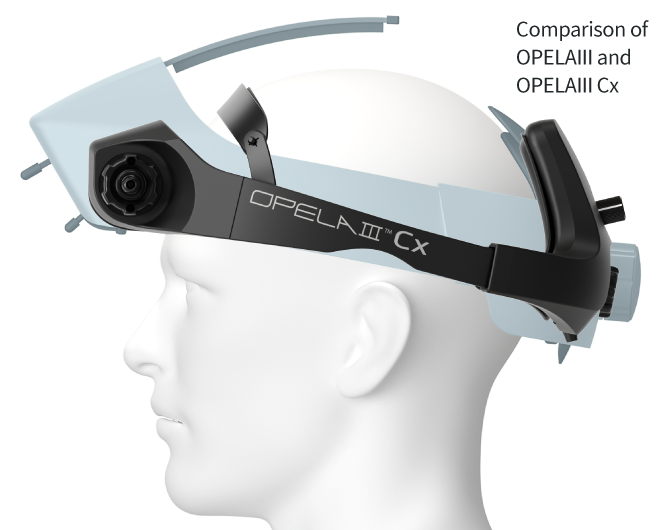

More Compact
Eliminating anything that isn’t 100% necessary, even by 1g or 1mm.
The light source module is reduced by 52% in volume from previous model.

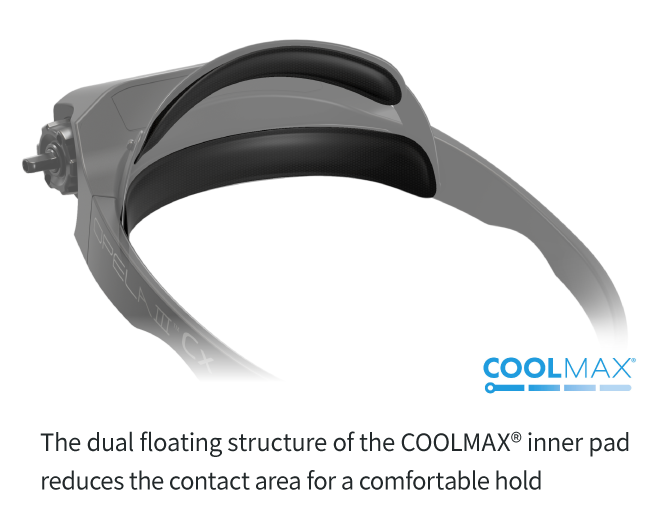

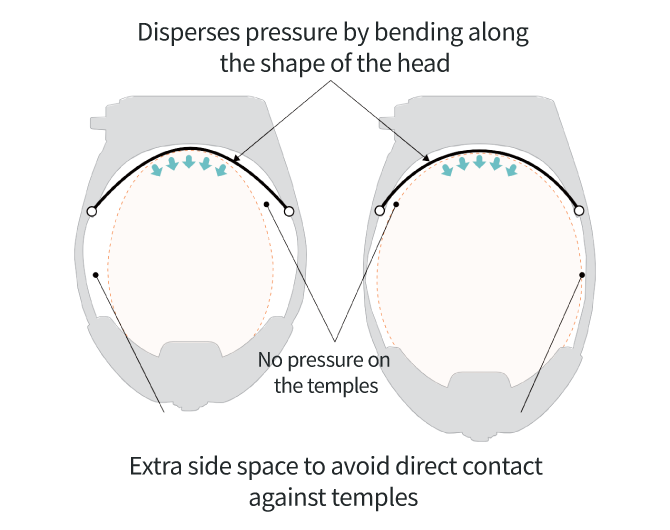

More Comfortable
Airy enough to forget you’re wearing it

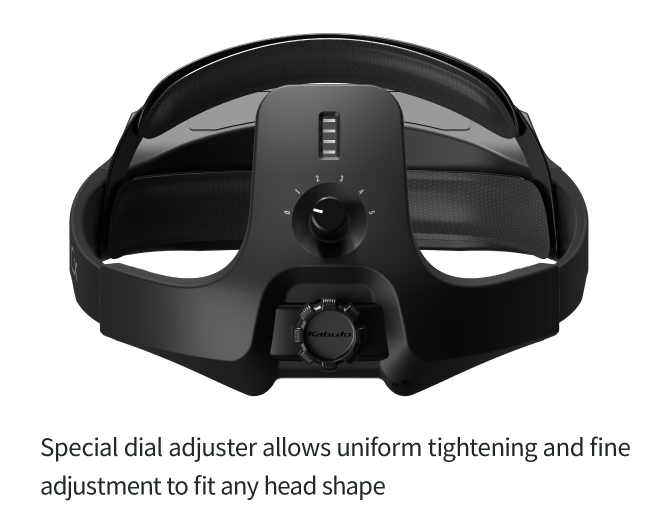

Fitting system jointly developed with the leading Japanese motorcycle/bicycle helmet manufacturer, OGK Kabuto.
03
Rear controls with battery gauge
Dual dial for lighting angle and spot size adjustment
Evolved User Experience
Simple Operation
- The power switch & brightness controls are all assembled on the back of the unit for ease of access
- Wide range of lighting angle and spot size can be selected with easy-to-operate adjustment dial
Battery Unit
- Simultaneous dual charger
- Fast charging (approx. 3 hours)
- 4-level charge indicator
- Pocket-size compact
- 4 hours of continuous use at max. brightness of
160,000 Lux
| Intensity Level |
Illuminance | Continuous Usage |
|---|---|---|
| 5 | 160,000 Lux | 4hours |
| 4 | 128,000 Lux | 5.5hours |
| 3 | 96,000 Lux | 7.5hours |
| 2 | 64,000 Lux | 12hours |
| 1 | 32,000 Lux | 20hours |
| Intensity Level |
Illuminance | Continuous Usage |
|---|---|---|
| 5 | 160,000 Lux | 4hours |
| 4 | 128,000 Lux | 5.5hours |
| 3 | 96,000 Lux | 7.5hours |
| 2 | 64,000 Lux | 12hours |
| 1 | 32,000 Lux | 20hours |
Power Source
- Can be plugged directly to electric outlet with AC adaptor,
ready for any situation
04
Specifications and Components
| Product Name | OPELAIII Cx | OPELAIII |
| Central Illuminance
*at 400mm distance *at minimum spot size |
160,000 Lux ±10% | 145,000 Lux ±10% |
| Continuous Illumination Time
*1 battery at full charge *at 400mm distance |
Level 5: 160,000 Lux / 4 hours Level 4: 135,000 Lux / 5.5 hours Level 3: 100,000 Lux / 7.5 hours Level 2: 80,000 Lux / 12 hours Level 1: 40,000 Lux / 20 hours |
2.5-6 hours (with light level set at 50%-100%) |
| Color Temperature | Approximately 5,000K | Approximately 4,500K |
| Intensity Adjustment | Adjustable (5 Levels) | Adjustable (8 Levels) |
| Variable Spot Size
*at 400mm distance |
Variable (φ60-230mm) | Variable (φ75-125mm) |
| LED Used | 3 Power LEDs (Lifetime: 50,000 hours) | 3 Power LEDs (Lifetime: 50,000 hours) |
| Battery Type | Nickel-Metal Hydride Battery | Nickel-Metal Hydride Battery |
| Operating Environment | When Charging 15-32℃, 20-85%RH (non-condensing) When Using 0-30℃, 20-85%RH (non-condensing) When Storing -20-50℃, 20-85%RH (non-condensing) |
When Charging 15-25℃, 20-85%RH (non-condensing) When Using 15-32℃, 20-85%RH (non-condensing) When Storing -20-50℃, 20-85%RH (non-condensing) |
| Power Consumption | Approximately 8W | Approximately 7.2W |
| Rated Voltage | 100～240V AC、47～63Hz (AC adapter) DC6V (battery unit) |
100～240V AC、47～63Hz (AC adapter) DC9V (battery unit) |
| Battery Recharge Time | Approximately 3 hours | Approximately 3.5 hours |
| Weight | Main unit: approximately 310g Battery unit: approximately 430g Charging stand: approximately 250g |
Main unit: approximately 390g Battery unit: approximately 480g |
| External Dimensions | Main unit Approx. W200 x H115 x D245-300mm Battery unit Approx. W85 x H140 x D40mm Charging stand Approx. W100 x H65 x D100mm |
Main unit Approx. W160 x H170 x D300-350mm Battery unit Approx. W140 x H100 x D50mm |
| Head Circumference | 51～65cm | 53～66cm |
| Standard Package Inclusions | Main unit: 1 unit COOLMAX🄬 inner pads: 1 set Battery unit: 2 units Charging stand: 1 unit AC adapter: 1 unit Attached belt: 1 unit Storage shell case: 1 unit Shoulder belt for shell case: 1 unit Instruction manual: 1 unit |
Main unit: 1 unit Cable tie: 1 unit Cord clip: 2 units COOLMAX🄬 comfort inner pads: 1 set Battery unit: 2 units AC adapter: 1 unit Attached belt: 1 unit Storage bag (with calibration kit): 1 unit Instruction manual: 1 unit |
| Classification Name | Operating Headlamp (Class 1) | Operating Headlamp (Class 1) |
| Notification No. in Japan | 13B3X10231000002 | 13B3X10231000001 |
| Intellectual Properties | ー | 【Patent】heat management system <Japan> 6283150 <USA> 10,401,004 【Design Registry】 <Japan> 1598372 <USA> US D850,681 S <Europe> 004387694-0001 |
| Product Name | |
| OPELAIII Cx | OPELAIII |
| Central Illuminance
*at 400mm distance *at minimum spot size |
|
| 160,000 Lux ±10% | 145,000 Lux ±10% |
| Continuous Illumination Time
*1 battery at full charge *at 400mm distance |
|
| Level 5: 160,000 Lux / 4 hours Level 4: 135,000 Lux / 5.5 hours Level 3: 100,000 Lux / 7.5 hours Level 2: 80,000 Lux / 12 hours Level 1: 40,000 Lux / 20 hours |
2.5-6 hours (with light level set at 50%-100%) |
| Color Temperature | |
| Approximately 5,000K | Approximately 4,500K |
| Intensity Adjustment | |
| Adjustable (5 Levels) | Adjustable (8 Levels) |
| Variable Spot Size
*at 400mm distance |
|
| Variable (φ60-230mm) | Variable (φ75-125mm) |
| LED Used | |
| 3 Power LEDs (Lifetime: 50,000 hours) | 3 Power LEDs (Lifetime: 50,000 hours) |
| Battery Type | |
| Nickel-Metal Hydride Battery | Nickel-Metal Hydride Battery |
| Operating Environment | |
| When Charging 15-32℃, 20-85%RH (non-condensing) When Using 0-30℃, 20-85%RH (non-condensing) When Storing -20-50℃, 20-85%RH (non-condensing) |
When Charging 15-25℃, 20-85%RH (non-condensing) When Using 15-32℃, 20-85%RH (non-condensing) When Storing -20-50℃, 20-85%RH (non-condensing) |
| Power Consumption | |
| Approximately 8W | Approximately 7.2W |
| Rated Voltage | |
| 100～240V AC、47～63Hz (AC adapter) DC6V (battery unit) |
100～240V AC、47～63Hz (AC adapter) DC9V (battery unit) |
| Battery Recharge Time | |
| Approximately 3 hours | Approximately 3.5 hours |
| Weight | |
| Main unit: approximately 310g Battery unit: approximately 430g Charging stand: approximately 250g |
Main unit: approximately 390g Battery unit: approximately 480g |
| External Dimensions | |
| Main unit Approx. W200 x H115 x D245-300mm Battery unit Approx. W85 x H140 x D40mm Charging stand Approx. W100 x H65 x D100mm |
Main unit Approx. W160 x H170 x D300-350mm Battery unit Approx. W140 x H100 x D50mm |
| Head Circumference | |
| 51～65cm | 53～66cm |
| Standard Package Inclusions | |
| Main unit: 1 unit COOLMAX🄬 inner pads: 1 set Battery unit: 2 units Charging stand: 1 unit AC adapter: 1 unit Attached belt: 1 unit Storage shell case: 1 unit Shoulder belt for shell case: 1 unit Instruction manual: 1 unit |
Main unit: 1 unit Cable tie: 1 unit Cord clip: 2 units COOLMAX🄬 comfort inner pads: 1 set Battery unit: 2 units AC adapter: 1 unit Attached belt: 1 unit Storage bag (with calibration kit): 1 unit Instruction manual: 1 unit |
| Classification Name | |
| Operating Headlamp (Class 1) | Operating Headlamp (Class 1) |
| Notification No. in Japan | |
| 13B3X10231000002 | 13B3X10231000001 |
| Intellectual Properties | |
| ー | 【Patent】 heat management system <Japan> 6283150 <USA> 10,401,004 【Design Registry】 <Japan> 1598372 <USA> US D850,681 S <Europe> 004387694-0001 |
Product Catalogs for OPELAIII Cx along with case reports and reviews
from surgeons in various medical specialties are available for download.
